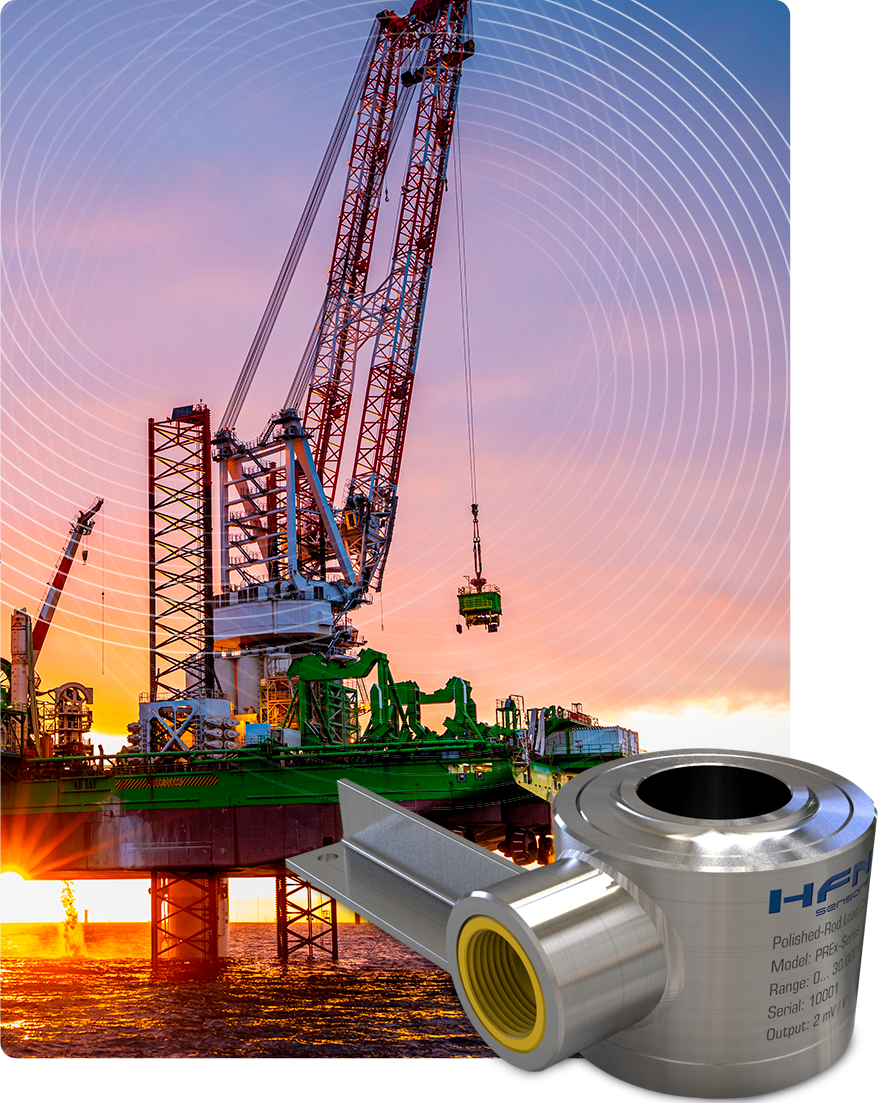

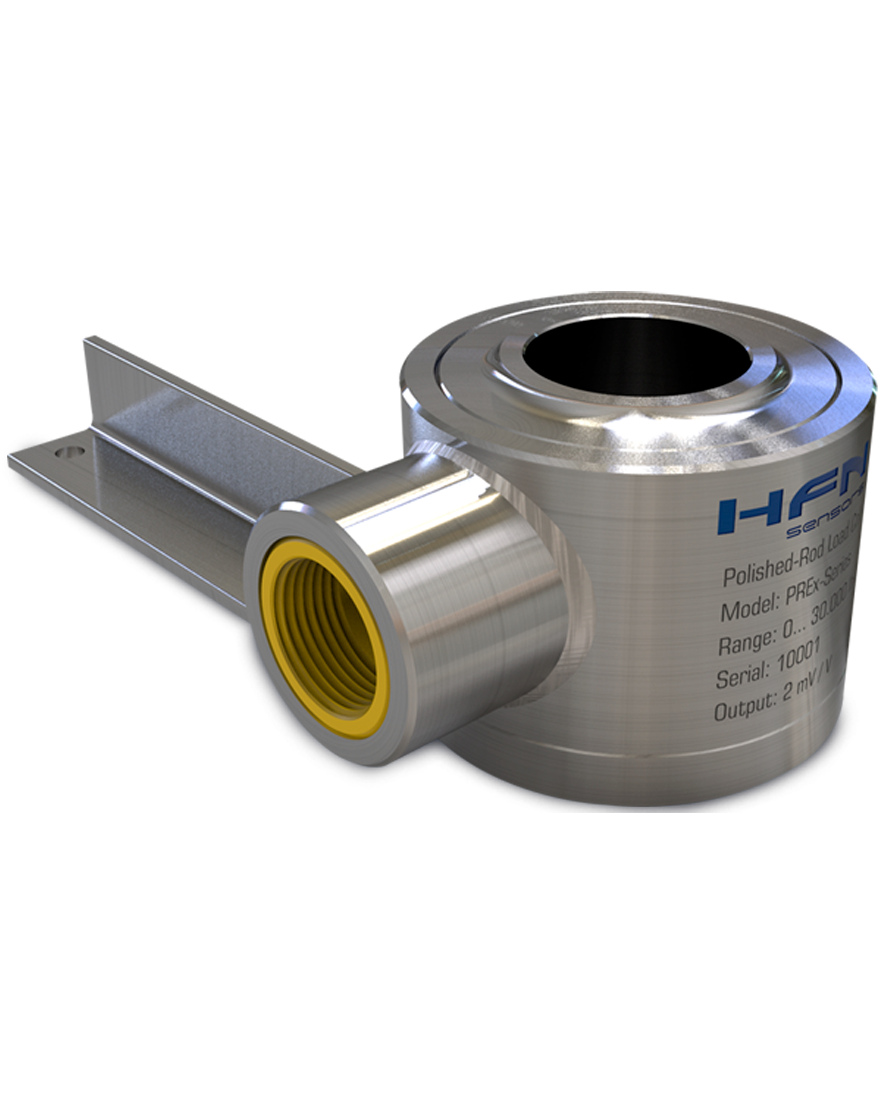

PREx Series — Polished Rod Load Cell

Engineered for harsh oilfield conditions, the PREx Series precisely measures tension on the polished rod to boost safety, accuracy, and uptime in rod-pump (beam-pump) systems. This polished rod load cell delivers stable readings where reliability matters most.

Key Features

  • High accuracy: ±0.25% for dependable polished-rod tension measurement
  • Rugged build: Special stainless-steel construction for high mechanical strength and corrosion resistance
  • Hermetically sealed: Keeps contaminants out for long service life in severe environments
  • Field-ready cabling: Robust strain-relief on the lead cable for durability

Typical Uses

  • Real-time load monitoring on polished rods (beam/rod-pump units)
  • Optimization of pump-off control and stroke performance
  • Safety interlocks and trend logging in oil & gas production

  • Industries: Offshore
  • Aplications: Anchoring Winches, Cranes, Monitoring, Overhead Crane, Port Terminal, Predictive Maintenance, Sucker Rod Pumping
  • Categories: Load Cells
Request a Quote

Technical Specifications

Load Cell for Polished Rod – PREx Series

The HFN PREx Series was specifically developed for the harsh conditions of oilfields, offering precision, durability, and safety in rod pumping systems (RPS).

Its robust stainless steel casing is filled with resin, protecting the internal electronic circuits and making the sensor ideal for use in classified areas, as well as resisting exposure to vapors, sea air, humidity and dust.

Each load cell is designed to withstand shock and vibration, ensuring reliable performance even in harsh environments. With a standard 2 mV/V electrical output, the passive mV signal is inherently intrinsically safe, making it ideal for installation in explosion-risk environments.

Available capacities

10 to 40 tons (or versions from 30,000 to 80,000 lbs). Can be manufactured according to specific customer configurations.

Downloads

Only registered and logged-in users can download the files below.
Don’t have an account? Sign up!
NameFile Download
Datasheet PREx30 Series Rev 00 Portuguese
Download
