LW Serie Load Wedge Sockets

Home
LW Serie Load Wedge Sockets

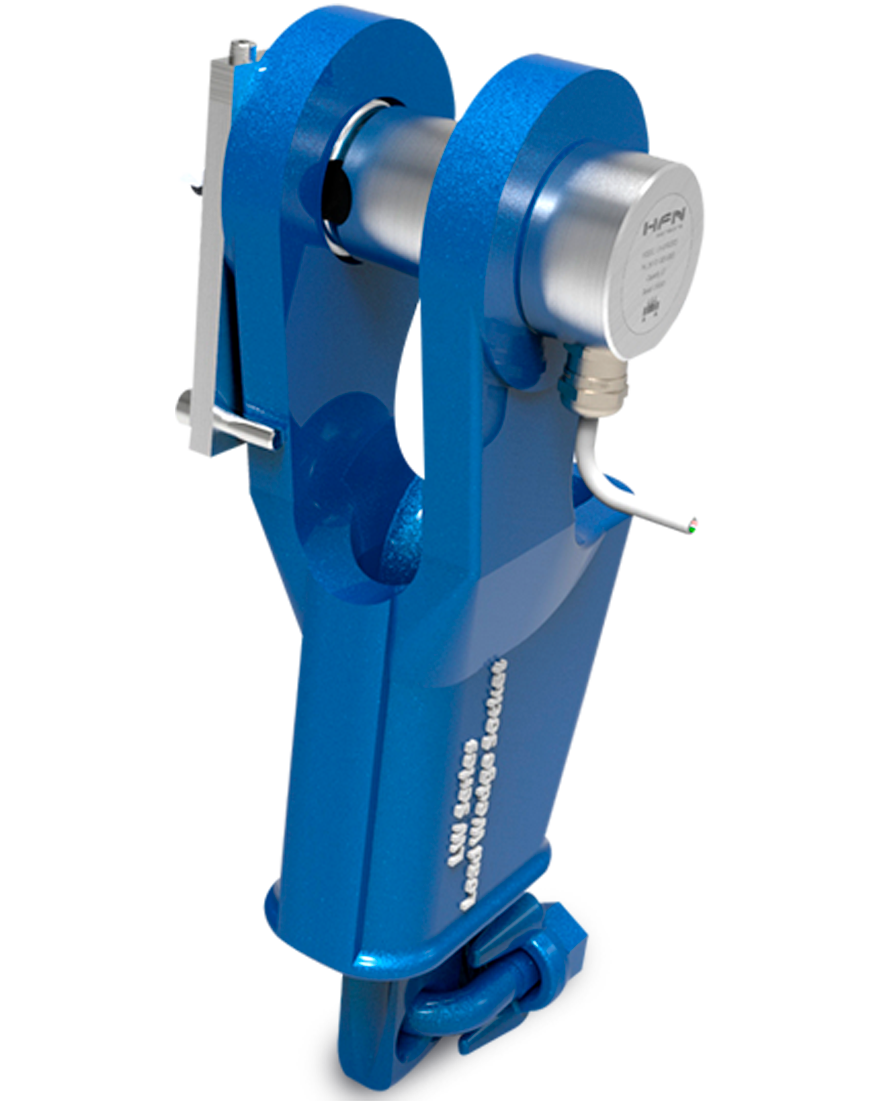

Low-Profile Washer Load Cell for Load Wedge Sockets

Instrument wire-rope terminations with confidence. The LW Series is a compact, washer-type load cell engineered to sit at the cable termination and measure the force applied inside Load Wedge Sockets—delivering precise, repeatable readings where space is tight and reliability is critical.

Typical applications

  • Measuring terminal force inside Load Wedge Sockets on wire ropes
  • Pre-load bolt assembly and structural fastener monitoring
  • Force testing on presses and industrial machines
  • General compression/load monitoring where a washer-type sensor is preferred

  • Industries: Construction, Industry, Logistics, Mining, Offshore, Silos
  • Aplications: Calibration, Clamping Forces, Measurement, Monitoring, Overhead Crane, Tank Weighing, Testing Equipment, Tightening Forces, Winch Systems
  • Categories: Load Cells, Load Wedge Sockets
Request a Quote

Technical Specifications

Why it’s ideal for Load Wedge Sockets

  • Designed for tight spaces: Low profile for direct integration at the wedge-socket termination.

  • Standard size: Ø 76 mm (3″) outer diameter, 25 mm (1″) height.

  • Custom bores & capacities: Tailored center-hole diameters and load ratings for your socket and cable.

  • Rugged PH stainless steel: High mechanical strength and corrosion resistance, temperature-compensated.

  • High safety margin: Robust design with >500% ultimate load.

  • Sealed for harsh sites: IP65 standard; IP67/IP68 on request.

  • Industrial cabling: PUR-jacketed cable for flexibility and long life in dynamic, high-cycle use.

Electronics & I/O options:

  • Wireless 2.4 GHz telemetry (BD-2008 / z24 / z24LR compatible)

  • Analog: 4–20 mA, 0–10 VDC

  • Digital: RS-232/RS-485, CAN

  • Load limiters, local/remote displays, and custom outputs available

Downloads

Only registered and logged-in users can download the files below.
Don’t have an account? Sign up!
NameFile Download
Datasheet LW Series Rev A Portuguese
Download

Got questions, need a quote, or want to talk about our products and services?

Get in touch with one of our specialists to discuss product purchases, calibration and installation services, or custom sensor development tailored to your application. We’re ready to help you find the ideal solution for your project.
Talk to a Specialist

Global Inquiries Welcome: Let’s Engineer Your Success

Based in the United States and serving customers worldwide, HFN Sensors delivers reliable weighing and measurement solutions. Share your project details in the form below and our team will contact you with a tailored response.
