LP Series Load Pin Cell

Home
LP Series Load Pin Cell

Load Pin (Shear-Pin) Load Cells

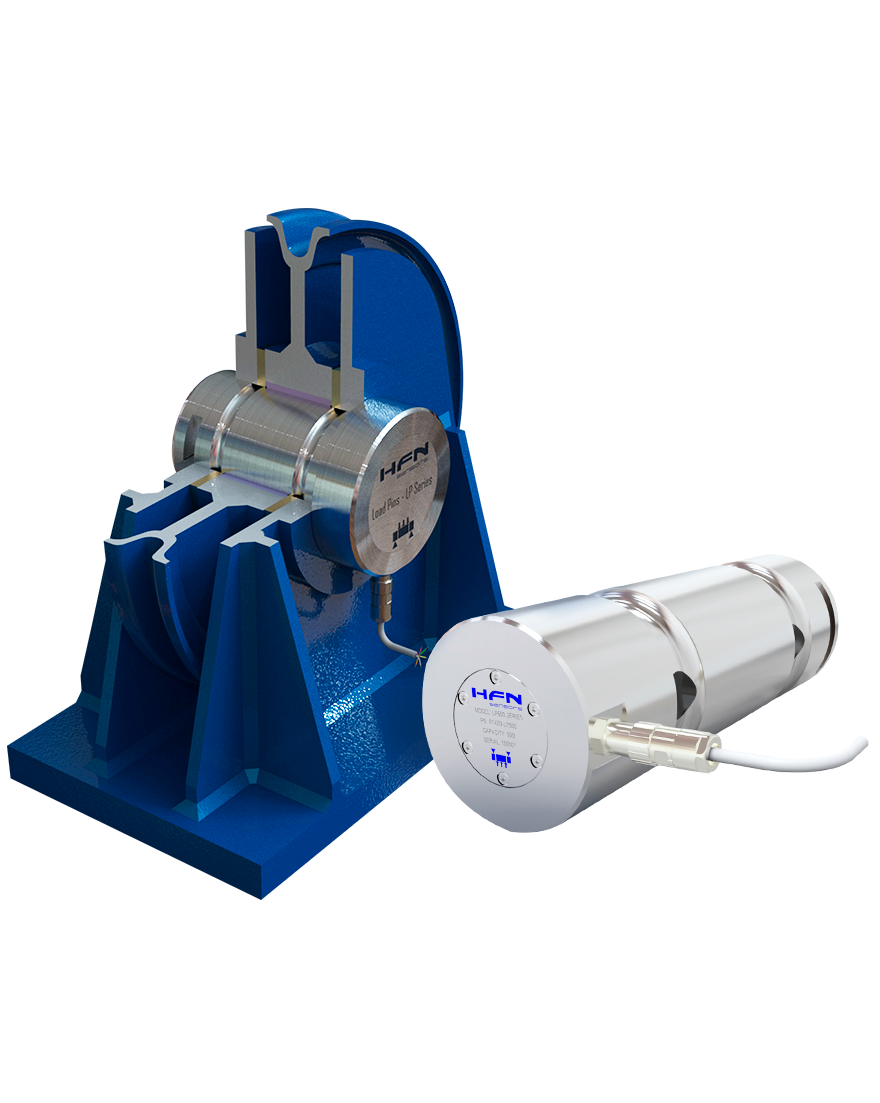

The LP Series Load Pin is a precision-engineered load pin load cell that replaces standard load-bearing pins in existing machinery—delivering accurate force, load, or tension measurement without structural modifications. Designed as a drop-in component for clevises, sheaves, and spherical rod ends, each Load Pin integrates seamlessly into your rigging or equipment to unlock real-time, reliable data.

Custom-built to your dimensions and duty cycle, the LP Series Load Pin simplifies maintenance and upgrades: swap the original pin, install the Load Pin, and start measuring. Built from high-strength stainless steel, it’s available in a broad capacity range from 0.1 t to 3,000 t, giving you the flexibility to instrument small mechanisms or heavy industrial systems with the same trusted platform.

  • Industries: Logistics, Offshore
  • Aplications: Anchoring Winches, Cranes, Load Lifting, Monitoring, Overhead Crane, Port Terminal, Pulley Systems, Subsea, Winch Systems
  • Categories: Load Cells, Load Pin
Request a Quote

Technical Specifications

Features of the LP Series Load Pin

  • Rugged construction: High-strength stainless or alloy steel with corrosion-resistant coatings for harsh and offshore environments.

  • Environmental sealing: IP65, IP67, or IP68 protection against water, dust, and contaminants.

  • Overload safety: Designed for extreme duty—overload ratings often ≥500% of rated capacity for added reliability.

  • Drop-in, compact design: The Load Pin replaces existing load-bearing pins with minimal space and no structural modifications.

  • Flexible outputs: Wireless 2.4 GHz, analog (4–20 mA, 0–10 VDC), and digital (RS-232/RS-485, CAN). Custom electronics and pinouts on request.

  • High accuracy: Stable, precise Load Pin measurements for real-time monitoring, control, and overload protection.

  • Easy installation & service: Fast swap with existing pins and spherical rod ends to reduce downtime.

Available capacities

0.1 t to 3,000 t (higher capacities on request). Custom dimensions and configurations are available to match your application.

Downloads

Only registered and logged-in users can download the files below.
Don’t have an account? Sign up!
NameFile Download
Datasheet LP Series Rv11
Download
