CTOP Series Dome Compression Load Cells

Home
CTOP Series Dome Compression Load Cells

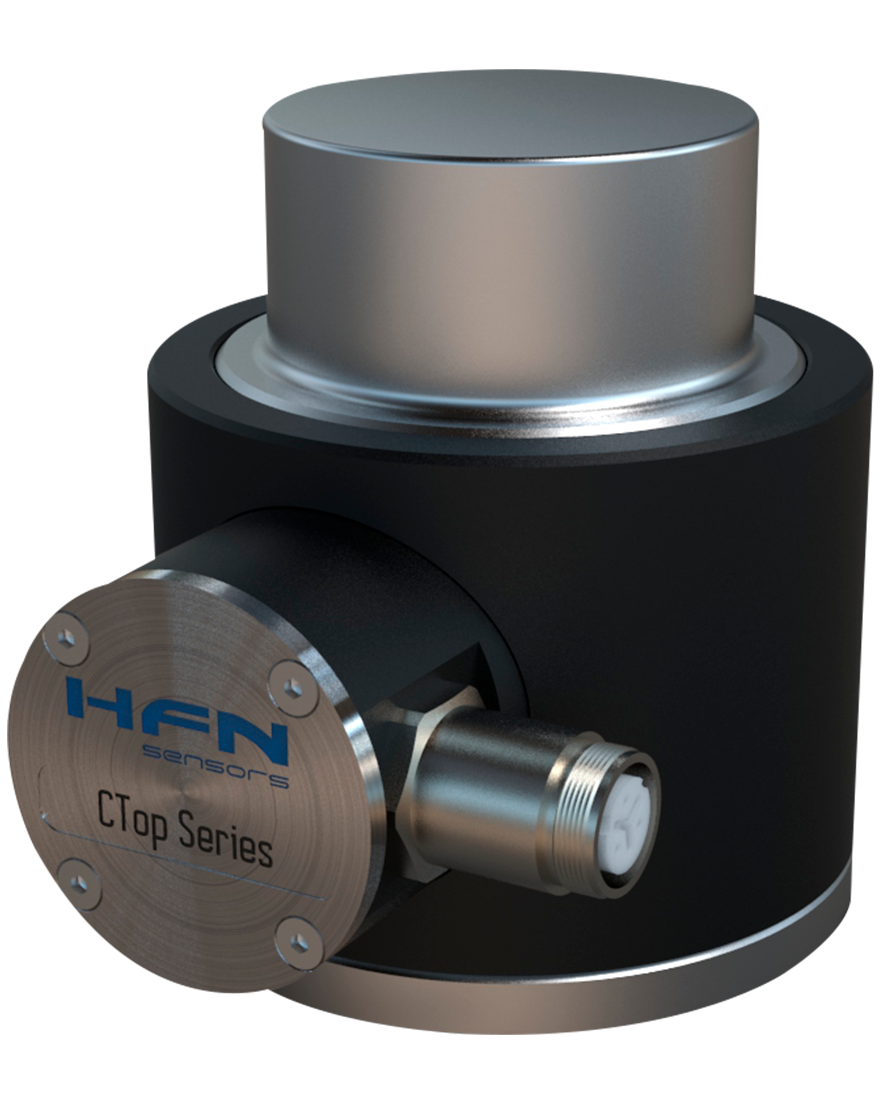

Dome Compression Load Cells with Self-Aligning Dome

CTop Series Dome Compression Load Cells feature a spherical, dome-shaped upper surface that automatically self-aligns under load. This design distributes force evenly and minimizes side-load effects, delivering stable, repeatable measurements in demanding industrial settings.

Available from 20 kN to 10 MN, CTop cells are built with materials suited to harsh environments, including stainless-steel versions. A version certifiable to ISO 376 is also available, enabling use as a force calibration standard.

Typical Applications

  • Silo and tank weighing with compensation for structural misalignment
  • Calibration of hydraulic presses and compression systems
  • Weighing and monitoring of large industrial equipment and test rigs

  • Industries: Industry, Mining, Offshore, Silos
  • Aplications: Calibration, Hydraulic Presses, Monitoring, Silo Weighing, Tank Weighing
  • Categories: Dome Compression, Load Cells
Request a Quote

Technical Specifications

Key Features — CTop Series Dome Compression Load Cells

  • Self-aligning dome (dome-shaped compression head) for uniform force distribution and minimized lateral-load errors

  • Wide capacity range: 20 kN to 10 MN (≈2 to 1,000 tons)

  • Rugged construction: Nickel-plated steel (CTopS) or stainless steel (CTopSS) for corrosion resistance

  • Ingress protection: IP65 standard; IP67/IP68 options for harsher environments

  • Mounting accessories: Loading caps (spherical heads) and mounting bases to simplify installation and alignment

  • ISO 376–certifiable reference version (Classes 1 and 0.5) — see CTop376

  • Calibration: ISO/IEC 17025 traceable calibration certificate available

  • Electronics options: Integrated amplifiers (Voltage, Current, RS-485, CAN), USB-C Digital Load Cell, and 2.4 GHz wireless telemetry compatible with HFN BD-2008 and z24/z24LR (ranges up to 1,000 m and 3,500 m, respectively)

  • Warranty: 3 years

Downloads

Only registered and logged-in users can download the files below.
Don’t have an account? Sign up!
NameFile Download
Datasheet CTOP Series Rev 0.0 English
Download
