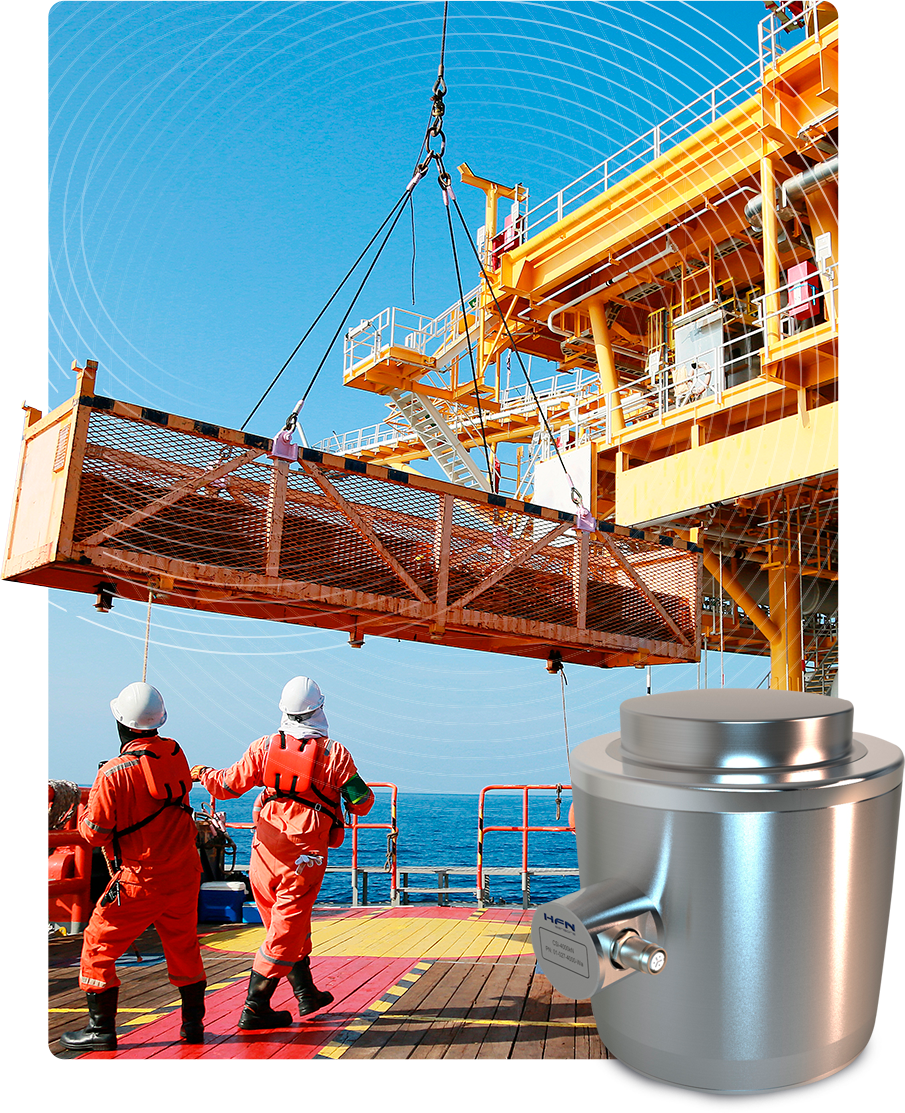

CS Series — Compression Load Cell

The CS Series force transducer is a high-precision, column-type sensor engineered for heavy loads from 300 kN to 10 MN (≈30 t to 1,000 t). Built from precipitation-hardened stainless steel (PH) for superior mechanical strength and corrosion resistance, this force transducer delivers stable performance in demanding industrial and offshore environments.

Why the CS Series Force Transducer

  • Accuracy at scale: High precision across very large nominal loads.
  • Hermetic protection: IP67 sealing for harsh sites (IP68 available on request).
  • Built to last: PH stainless construction for strength and corrosion resistance.
  • Installation flexibility: Custom mounting accessories tailored to your project.
  • Proven traceability: Calibration certificates from an ISO/IEC 17025 accredited lab.

At a glance

  • Type: Column-style force transducer
  • Rated loads: 300 kN to 10 MN (≈30–1,000 t)
  • Environment: Industrial and offshore applications
  • Documentation: Traceable calibration, user-ready accessories available
  • Industries: Construction, Industry, Logistics, Mining, Offshore, Silos
  • Aplications: Anchoring Winches, Hoppers, Testing Equipment
  • Categories: Force Transducer, Load Cells
Request a Quote

Technical Specifications

Features

  • Top spherical load head for load compensation

  • High-grade stainless-steel construction

  • Upper spherical joint to compensate for misalignment/off-axis loads

  • Rugged design with simple installation

  • IP67 protection (IP68 available)

  • Optional integrated amplifiers: 4–20 mA; 1–5 VDC; Serial RS232/RS485 (others on request)

  • Portable wireless telemetry indicators

  • Multiple mounting accessory options

Available capacities

300 kN to 10 MN | 30 t to 1,000 t (higher capacities on request).
