BK Series Load Shackle

Home
BK Series Load Shackle

Compact, Lightweight, High-Capacity (5 t to 1,000 t)

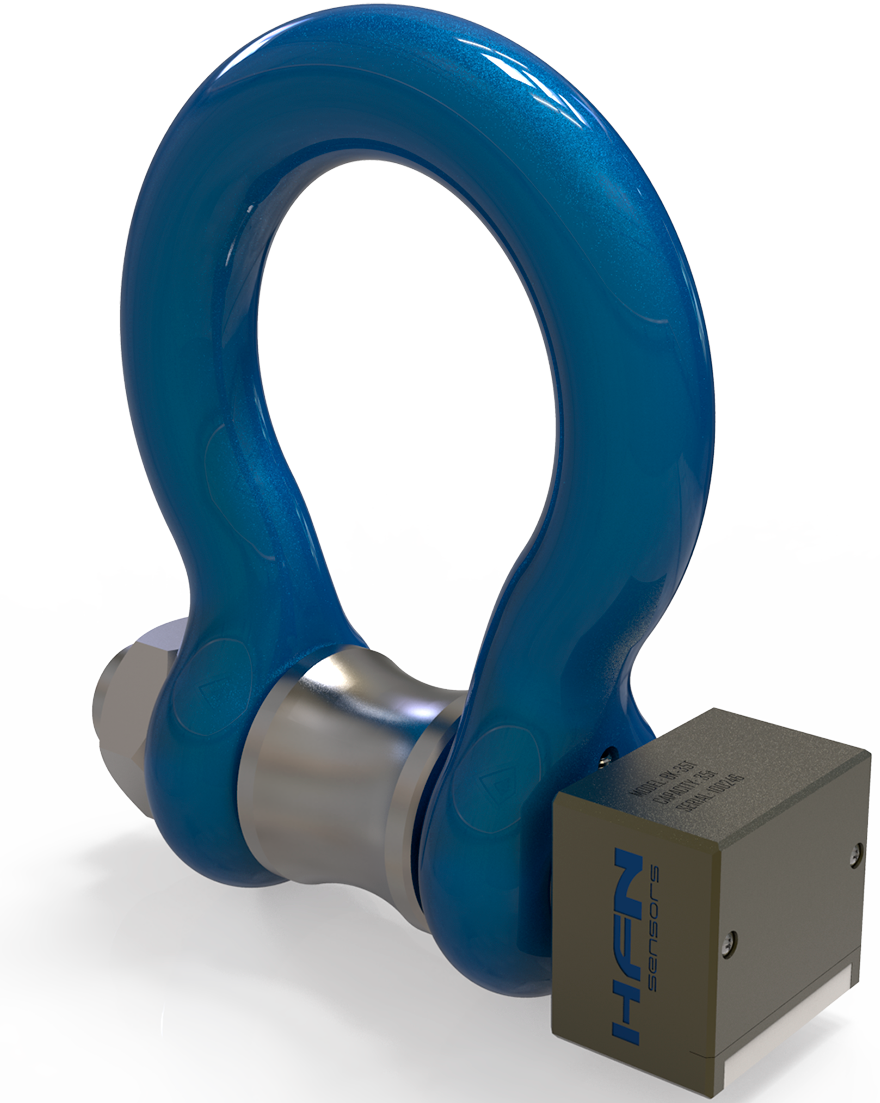

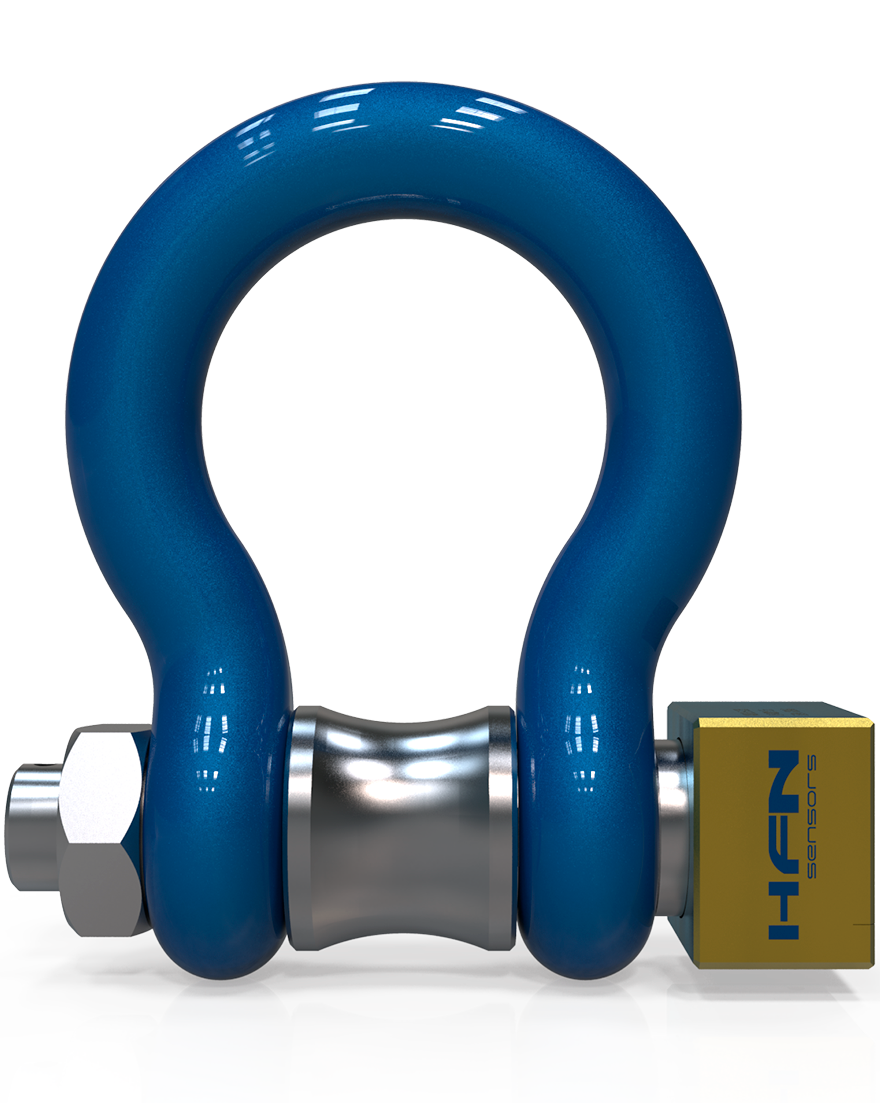

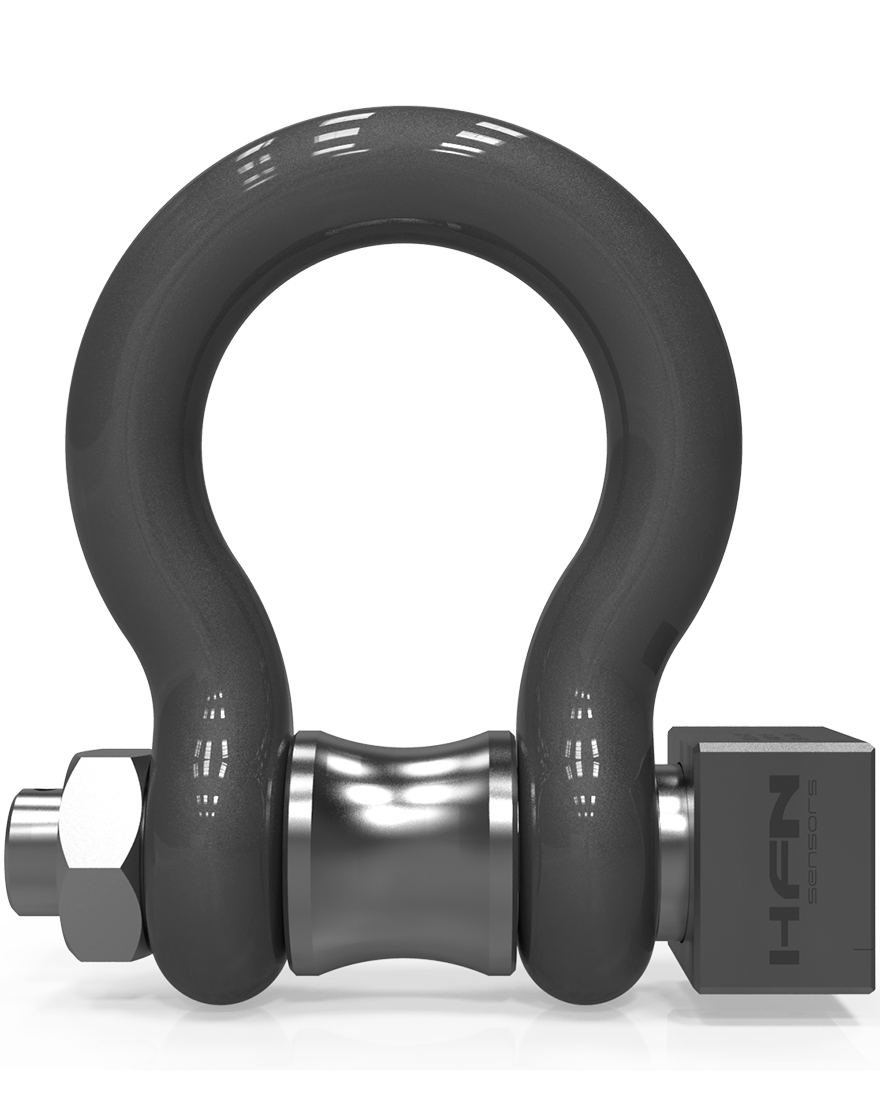

The BK Series from HFN Sensors is a compact, lightweight load shackle (instrumented shackle) engineered for tight-headroom lifts and heavy-duty applications from 5 t to 1,000 t. Designed for reliability on cranes and overhead hoists, it delivers precise, repeatable readings where safety and accuracy matter most.

Each load shackle ships with the renowned BD-2008 long-range 2.4 GHz indicator, a calibration certificate, user manual, and an ultra-rugged carrying case — everything you need to put trusted measurements to work fast.

Typical applications

  • Digital dynamometer on cranes and overhead cranes
  • Accurate measurement of suspended loads
  • Proof-load testing with water bags
  • Cable and stay-wire tensioning

  • Industries: Construction, Industry, Logistics, Offshore
  • Aplications: Cranes, Overhead Crane, Water Bags
  • Categories: Load Cells, Load Shackle
Request a Quote

Technical Specifications

Real-Time Load Monitoring for Demanding Lifts

The BK Series load shackle is an instrumented shackle designed to measure applied load or force directly from a standard lifting shackle. Trusted across marine, construction, oil & gas, and industrial manufacturing, this load shackle integrates seamlessly with hoists, cranes, rigging, and proof-load tests with water bags to elevate safety, efficiency, and compliance.

Engineered for harsh environments, the BK Series enables real-time load monitoring to prevent overloads, optimize equipment usage, and streamline operations—where a reliable load shackle makes all the difference.

Key Features of the BK Series Load Shackle

  • Wide capacity range: From 5 t to 1,000 t (other capacities on request).

  • Rigging compatibility: Works with master links, wire ropes, chains, and lifting slings.

  • High durability: Premium materials deliver long service life and dependable safety margins.

  • Integrated load sensing: Supports remote monitoring to optimize lifting workflows.

  • Versatile applications: Ideal for cranes, towing, overhead hoists, lifting and material handling, offshore and maritime operations, and proof-load testing with water bags.

Technical Specifications

  • Type: Dual-shear load pin, built in stainless steel and/or high-hardness alloy steel, nickel-plated for corrosion resistance.

  • Temperature range: Compensated use from –5 to +70 °C.

  • Breaking load: Robust design with >300% Fnom (>500% available).

  • Ingress protection: IP65 (options for IP57/IP68).

  • Included: BD-2008 2.4 GHz Wireless Indicator (wireless version).

  • Power: AA alkaline batteries (other battery types available for high-temperature or special requirements).

Available Capacities

5 to 1,000 t (custom options available upon request).

Downloads

Only registered and logged-in users can download the files below.
Don’t have an account? Sign up!
NameFile Download
Datasheet BK SERIES R05PT-1 Portuguese
Download
