Specifications

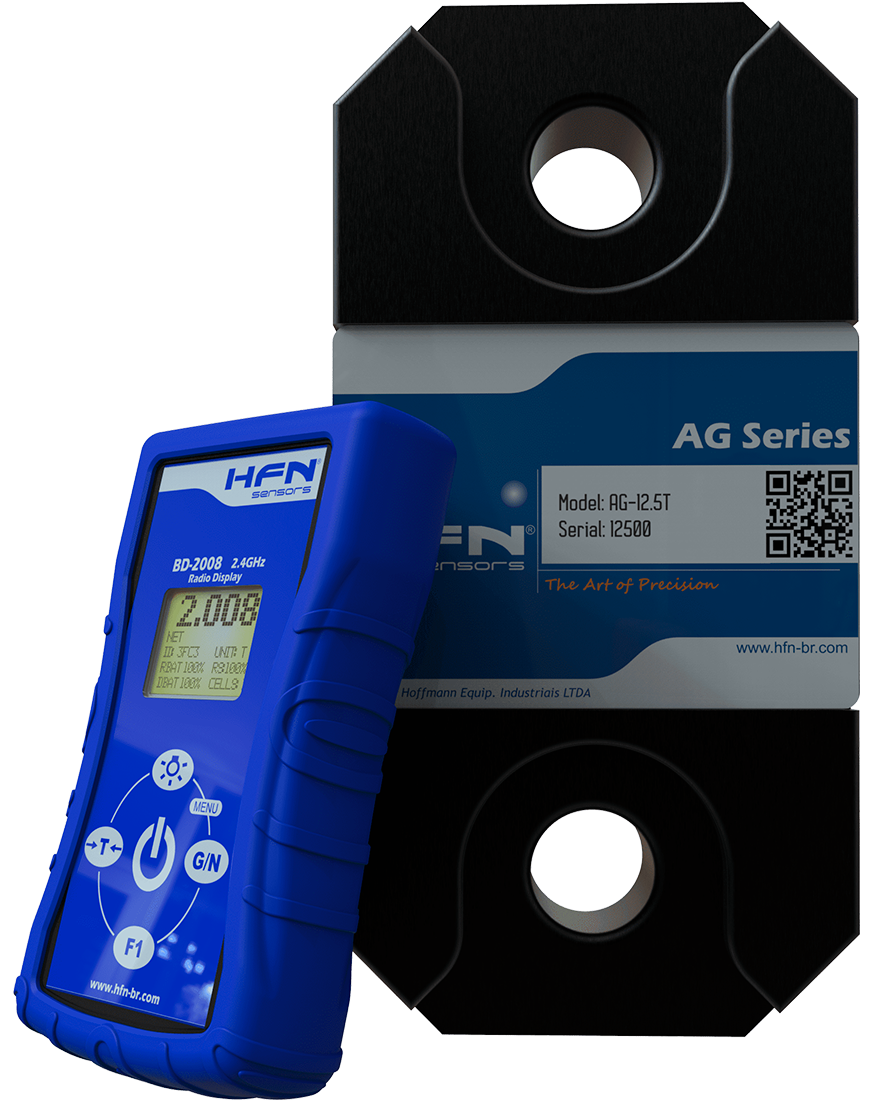

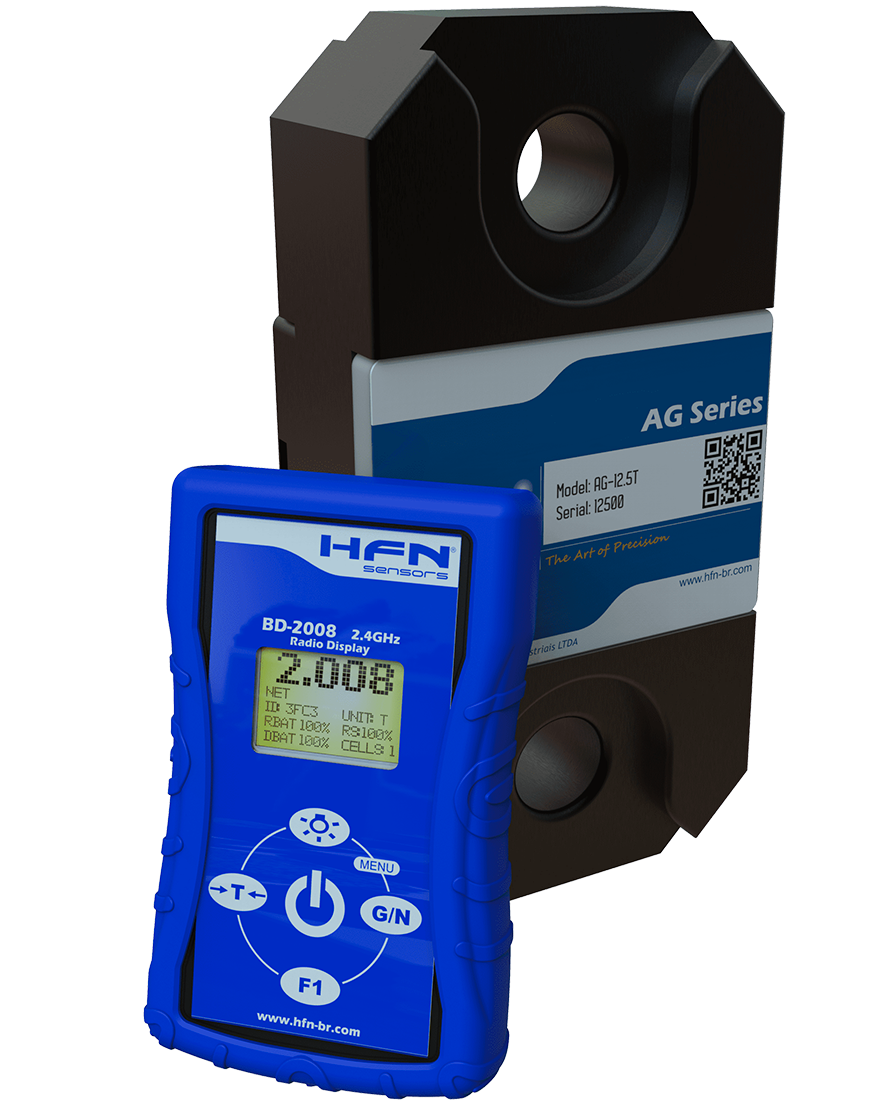

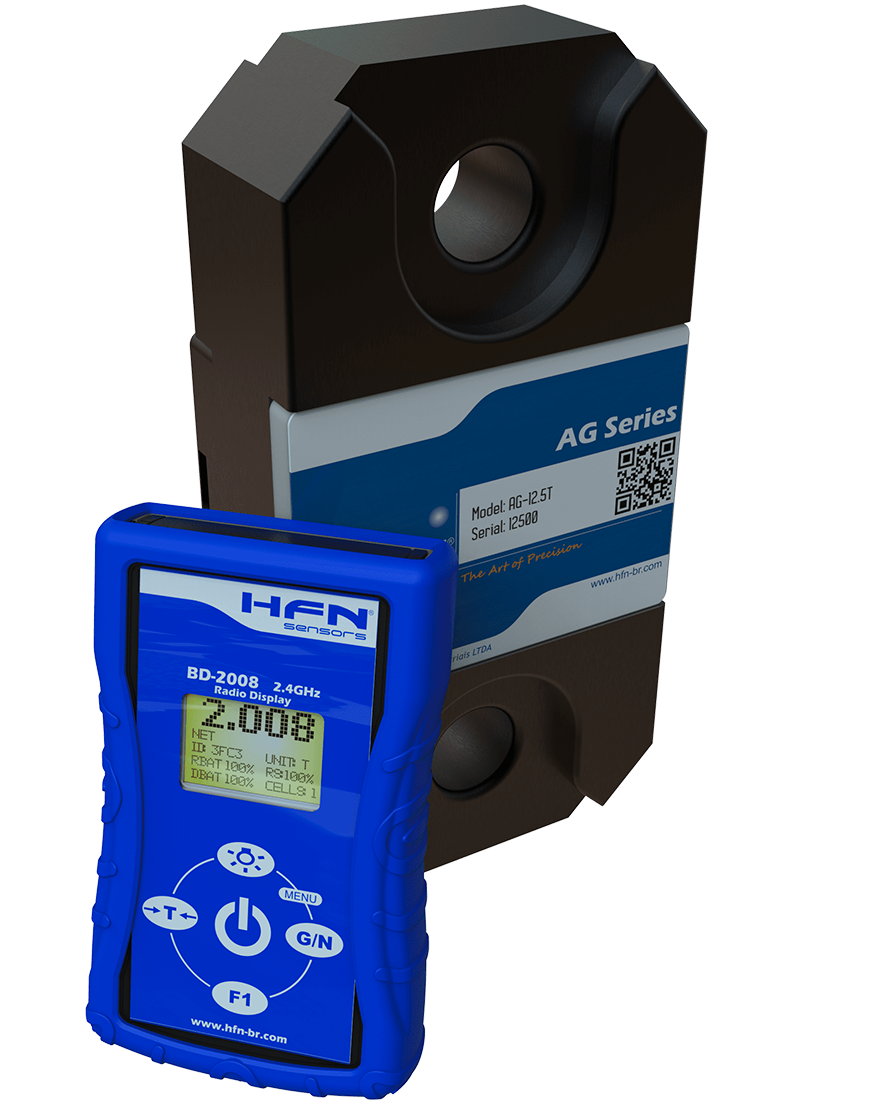

- Load Link type load cell with 2.4 GHz wireless communication;
- Made from aircraft-grade aluminum, ensuring lightness and high resistance;
- Anti-corrosion coating by hard anodizing in black color (natural anodizing optional);
- Robust design;
- Simple installation;
- IP65 protection (IP67 optional) with Smart Lid – screwless lid that is easy to open for battery changes;
- Integrated wireless transmitter model BD-2008LR 2.4 GHz with low consumption and long range;
- Internal antenna ensuring robustness;
- Supplied with BD-2008 2.4 GHz wireless indicator;
- Software Toolkit for configuration and calibration. There are three software and hardware versions:
- Version 3.1: Battery compartment with USB-C connector. USB cable required for connection to computer;
- Version 3.2: Web application. Windows or Android device with Bluetooth 4.0 or higher required;
- Version 4.0: requires the use of a USB HFB modem and a Windows® computer with the toolkit software installed.
- Food:
- Load Cell: 3x AA alkaline batteries 1.5 Vdc;
- The BD-2008 wireless indicator has a dual power supply system: an internal 3.7Vdc Lithium-Ion battery with charging via the USB Type-C port and power supply using 2x 1.5 Vdc alkaline batteries. Systems operate independently.
Options:
- IP 67 protection with use of screwed cover on the battery compartment;
- Natural anodizing that results in a matte layer with a golden-gray color;
- Double bridge and integrated amplifiers: 4-20 mA; 1-10 Vdc; Serial RS485 Modbus RTU; CAN (others on request);
- Double bridge with mV/V output allows the use of a second weighing indicator, such as BD-1908;
- The two systems can operate together and are calibrated individually.
-
Available capacities:
5t, 12.5t, 15t, 20t, 30t, 35t, 50t, 85t, 100t, 120t, 150t, 200t, 250t, 300t, 400t, 500t (other capacities on request).
Specifications subject to change without notice.
